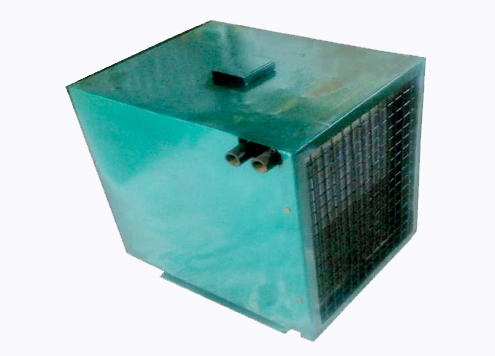

AIR BLAST COOLER

In a majority of hydraulic applications the problem is due to the oil temp shooting up for want of proper cooling system. VESPA offers air blast oil coolers for a heat desipation ranging from 1500 kcal/hr (1.7kw) to 90000 kcal/hr (105 kw).these type of units are being recommended where the raw water availability is scarce as well as for non stationary application. being supplied to leading machine tool builders as original equipment incorportes latest finning techniques with optimum heat transfer.

1.Hydraulic Oil Considered
2. Ambient Air Temp Taken As 40°C Max
3. Oil Stabilization Temp 55°C Max / 45°C Opt
4. Saddle Support Holes- 4Nos 18
5. Oil Coolers Will Have Copper Tube With Aluminium Plate Fins.
6. Fan Moters Suitables For 3 Ph / 415 v
7. Oil Flow Specified Is The Min Flow Reqd.
8. Over All Dimensions Are Approximate And Are Subject To Revisions.
